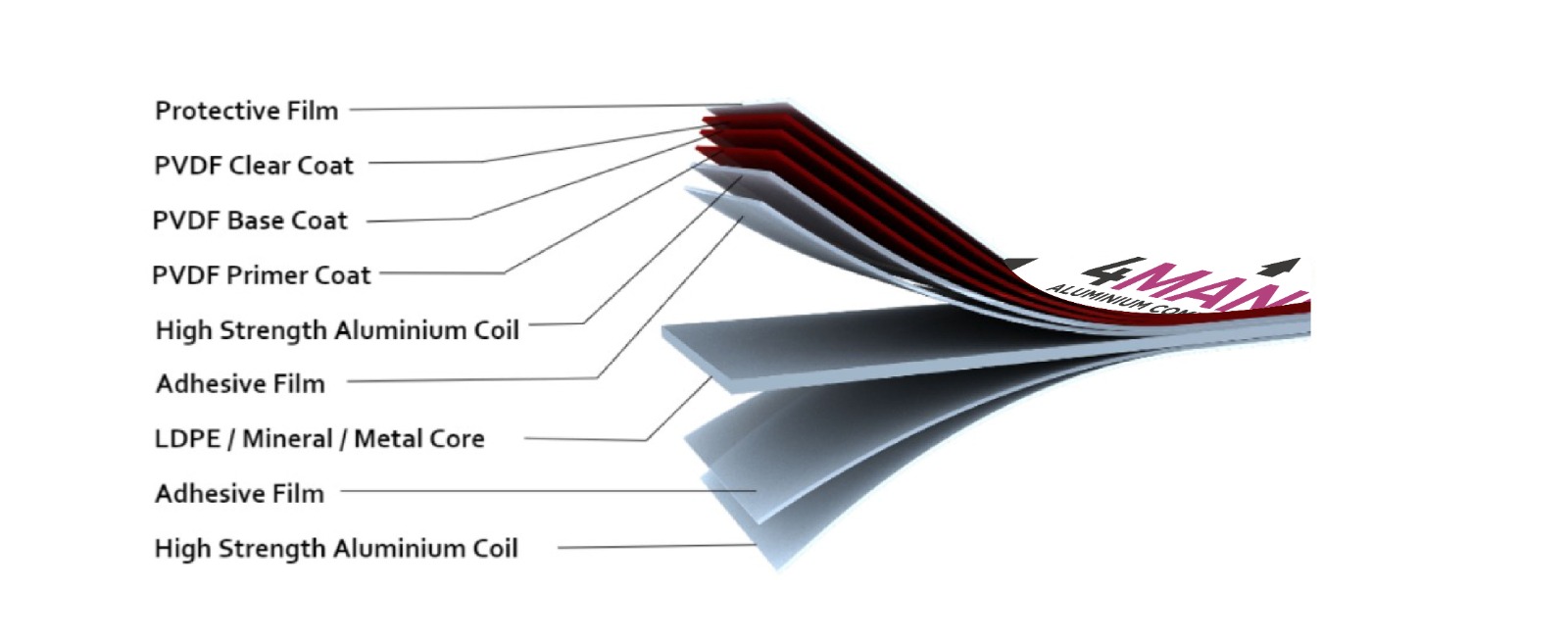

Our ACP Aluminium sheet is crafted with two high-strength aluminium solid sheets, bounded to a core material typically made from Low-Density Polyethylene (LDPE), Fire-Retardant (FR) mineral-filled materials, or advanced metal core. It features three coats of PVDF and an additional layer of protective film. All these layers are bounded together using a strong adhesive. The ACP sheet then undergoes more than 50 stringent quality control tests using cutting-edge machinery imported from Germany and Japan. Third-Party certifications awarded to our products demonstrate our dedication to providing exceptional quality.
Superior Flatness
Light-weight
Paint Finish Consistency
UV-resistant
Weather-proof
Available in Fire-Retardant
Impact-resistant
Vibration & Dampening-resistant
Sound & Heat Insulation
Easy Installation & Maintenance
| Product Grade | Total ACP Thickness | Front Skin Thickness | LDPE Core Thickness | Back Skin Thickness | Front Skin Coating Thickness | Back Skin Coating Thickness |
|---|---|---|---|---|---|---|
| Platinum | 4 mm | 0.50 mm | 3.00 mm | 0.50 mm | 25 μ ± 3 | 7 μ ± 1 |
| Pearl | 4 mm | 0.25 mm | 3.50 mm | 0.25 mm | 25 μ ± 3 | 7 μ ± 1 |
| Ruby | 3 mm | 0.25 mm | 2.50 mm | 0.25 mm | 25 μ ± 3 | 7 μ ± 1 |
